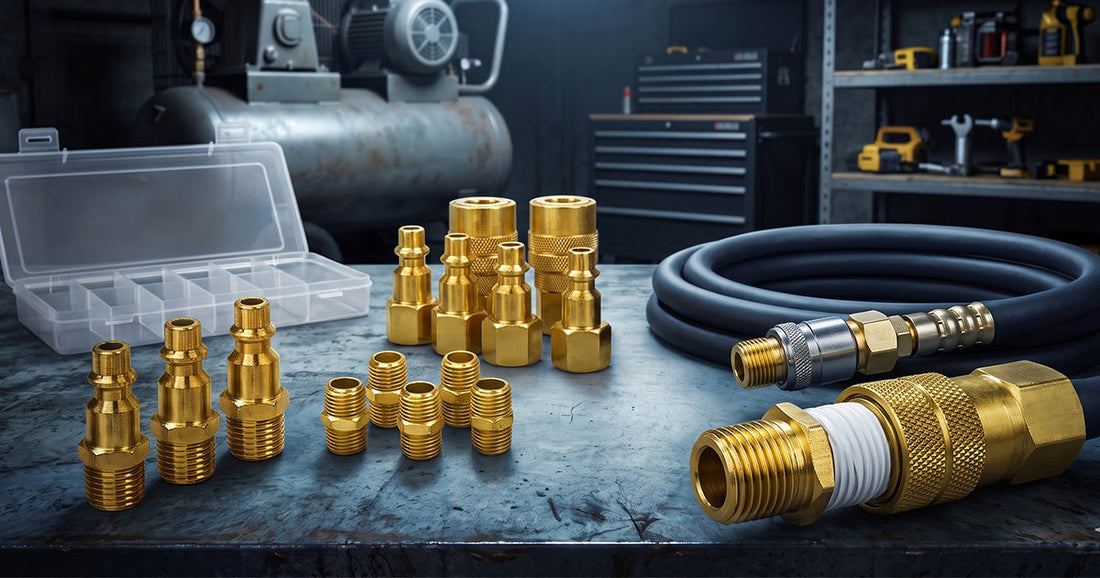

Air Hose Fittings & Quick Couplers Explained: NPT, Industrial & Automotive Standards

Air Hose Fittings & Quick Couplers Explained — NPT, Industrial & Automotive Standards

Nothing kills shop productivity faster than incompatible fittings. You buy a new air tool, connect it to your hose, and the coupler doesn't match. Or worse — it seems to fit but leaks air constantly because the thread standards are different. This guide demystifies air fittings: thread types, coupler profiles, sizing, and how to build a leak-free system that lets you swap tools in seconds.

Written by Charles Rosenstein, Le Lematec / Factory Direct — over 15 years in pneumatic tool engineering and air system design.

Thread Standards: NPT vs BSP vs Metric

The thread standard determines whether fittings seal properly. Mixing incompatible standards causes leaks, cross-threading, and damaged components.

NPT (National Pipe Taper) — US Standard

NPT threads are tapered — they get slightly narrower toward the end. This taper creates a mechanical wedge seal as the fitting is tightened. NPT requires thread sealant (PTFE tape or liquid) to fill microscopic gaps between threads for an airtight seal.

Common NPT sizes for air tools: 1/4" NPT (most air tools, fittings, and accessories), 3/8" NPT (larger tools, filters, regulators), 1/2" NPT (high-flow systems, main lines).

BSP (British Standard Pipe)

BSP comes in two variants: BSPT (tapered, similar concept to NPT) and BSPP (parallel/straight). BSP is standard in European, Asian, and Australian equipment. NPT and BSP threads have different angles (60° vs 55°) and are not interchangeable despite looking similar.

Metric

Some European pneumatic equipment uses metric threads (M5, M8, etc.). These are less common in US shops but appear on imported machinery and specialty tools.

Quick-Connect Coupler Profiles

Quick-connect couplers let you snap tools on and off in seconds without thread sealant. But not all quick connects are the same — different profiles are physically incompatible.

The most important rule: Pick one profile for your entire shop and standardize on it. Industrial (I/M) is the most common and widely available in the US. Our 15-Piece Quick Connect Air Fittings Kit uses the Industrial standard in 1/4" NPT — the universal fit for most US air tools and accessories.

Anatomy of a Quick-Connect System

Every quick-connect setup has two parts:

• Coupler (female socket): Mounts on the air supply side (hose end, wall drop, manifold). Has a locking mechanism that grips the plug.
• Plug (male nipple): Mounts on the tool side. Slides into the coupler and locks. Each tool gets its own plug, so you can swap tools by just pulling back the coupler collar and clicking in the next plug.

Setup strategy: Install couplers on every hose end and air drop. Install plugs on every tool inlet. This way any tool connects to any hose with one click.

Fitting Size: Match the Flow

Undersized fittings restrict airflow just like undersized hoses. The fitting's internal bore must support the CFM your tool needs:

• 1/4" NPT fittings: Good for tools up to ~12 CFM. Handles most impact wrenches, die grinders, blow guns, and small sandblasters.
• 3/8" NPT fittings: For tools needing 12–25 CFM. HVLP spray guns, large sandblasters, and orbital sanders.
• 1/2" NPT fittings: For high-flow applications above 25 CFM and main distribution lines.

Swivel Fittings: Eliminate Hose Kinks

Swivel connectors allow 360° rotation at the joint, preventing the hose from twisting and kinking as you move around a workpiece. They're especially valuable at the tool end where you're constantly changing angles.

Our AI-112-1 Swivel Connector Kit provides Teflon-sealed swivel rotation at up to 120 PSI with a male adapter for universal compatibility. Install one between the hose end coupler and the tool plug — your hose will thank you.

Thread Sealant: PTFE Tape vs Liquid

All NPT connections require sealant. Here's when to use each type:

• PTFE (Teflon) tape: Wrap 3–5 turns clockwise around male threads before connecting. Best for: connections you may need to disassemble later, standard workshop fittings. Our fittings kits include Teflon tape.
• Liquid thread sealant (pipe dope): Brush onto male threads. Best for: permanent connections, high-vibration applications, and large-diameter fittings where tape can shred.
• Never use both simultaneously — excess sealant material can break free and clog tool passages.

Common Fitting Problems & Fixes

Building a Complete Fitting System

Start with a 15-Piece Quick Connect Kit — it includes everything you need to outfit your compressor, hoses, and first several tools with Industrial-profile 1/4" NPT couplers and plugs. Add swivel connectors at the tool end to prevent kinking. As your shop grows, keep spare plugs and couplers on hand so every new tool can be connected instantly.

For the complete air system overview including hose selection, filtration, and regulation, see our Air Compressor Accessories Buying Guide and Air Hose Selection Guide.
